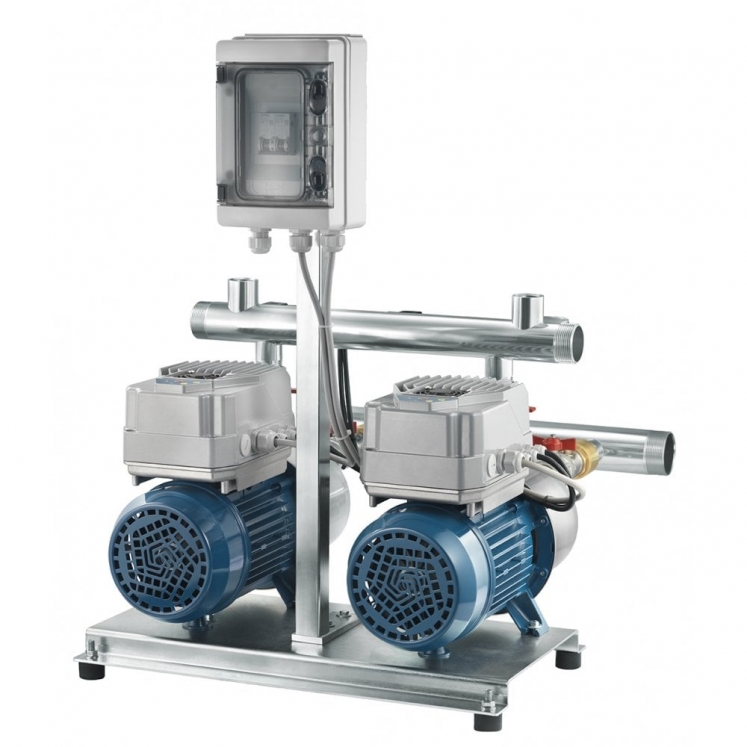

Pentax 2 Ultra S Twin Pump Variable Speed Booster Set -2 U 3S-120/6T+IPFC 306 400v).

Constant pressure booster set with2 pumps (2 ULTRA+VSD) controlled by variable speed drive

VSD (EPIC/IPFC). Horizontal pumps, stainless steel impellers, diffusers, shaft and pump body. Stainless steel suction and delivery manifolds. Unit base and support for control panel in galvanised steel. One check valve for each electric pump, installed on suction side.Ball valves with pipe union installed on suction side anddelivery side of each electric pump. Pressure gauge with radial connection.

Pressure sensor connected on the output manifold and electrically connected to VSD.Control box with main switches (one for each pumping unit) to switch off the system, in ABS and IP55 insulation grade.

IPFC VSD are equipped with Bluetooth module in positionto be connected to an App for mobile transmitting theworking data of the group, these can be changed the booster for a better set up of the parameters.

*Please call before placing an order on the website to check stock availability*
