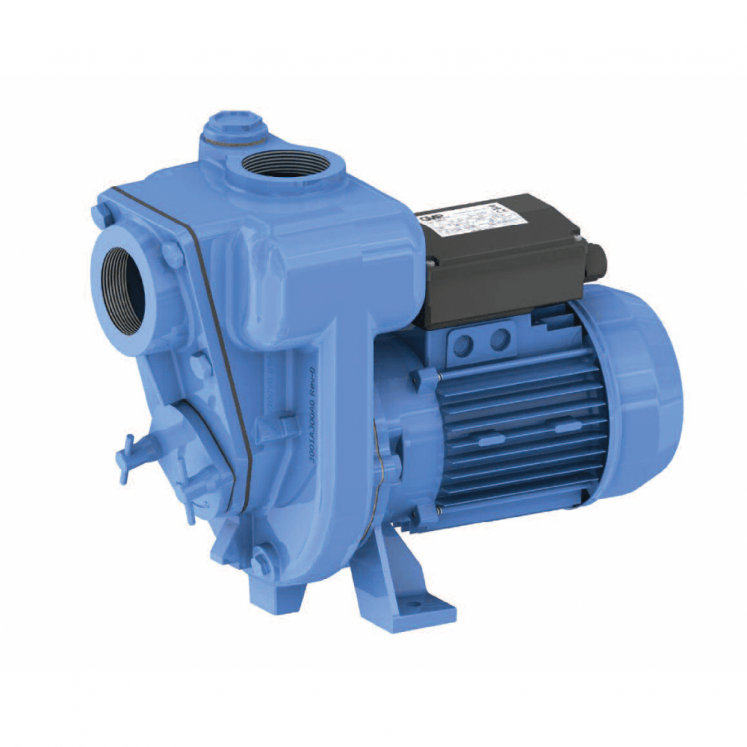

GMP B3XRA-ST EANH 3 BLADE SELF PRIMING pump 415V. GMP heavy duty cast iron self priming pumps. Self priming electric pump with multi blade impeller, suitable for pumping clean and dirty water. Trash duty and provided with an inspection door to remove any blockages that may occur. Not suitable for pumping abbrasives. A non return valve is fitted on the inlet of the pump body to avoid the loss of water after the pump has stopped, making it easier to prime when the pump starts again.

Maximum suction depth of 6 metres and a maximum liquid temperature of 60°c. Pump casing, inlet flange and impeller are made from cast iron. Stainless steel shaft. Silicon carbide mechanical seal.

Models 4Kw and above now supplied on a skid plate.

• B3XRA-ST EANH
• Centrifugal Trash Impeller
• 415v 50Hz
• 5.5Kw
• 1370 Litres Per Minute Maximum
• 24 Metres Head Maximum
• Maximum suction 6 Metres
• Approx 24mm solids handling
• 3" BSP Female Inlet & Outlet
• H 300mm x W 185mm x L 445mm
• 32Kg
• Maximum liquid temperature 60 Degrees
• Suitable for clean and dirty water applications
