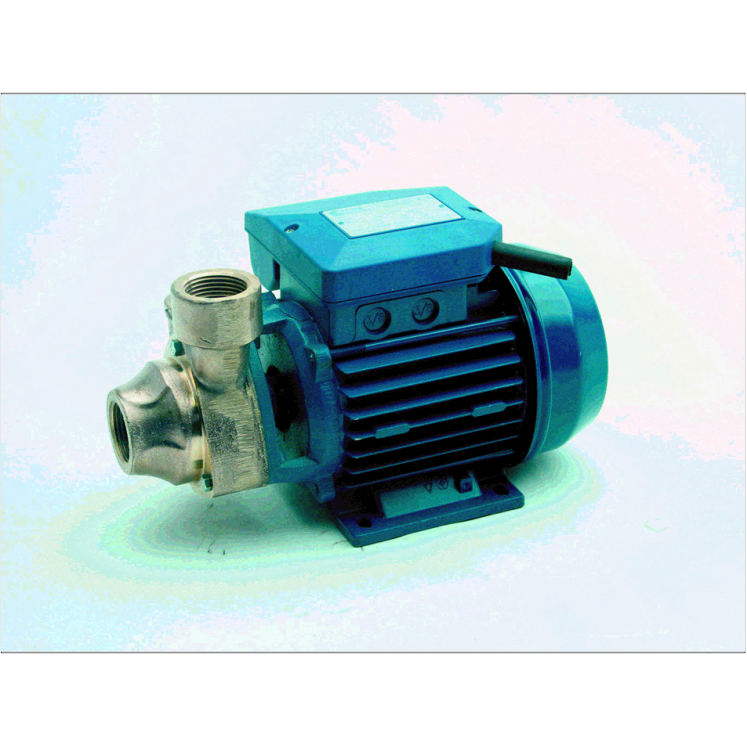

The PM/PB range are peripheral turbine pumps, made 70 to develop high pressure with limited flow rates. The 60 pump impeller and pump casing are made of brass. XKM60 pump impeller made of brass, pump body cast iron.

Clean water only with a maximum tamp of 70°C.

Used mainly for water pressure boosting of small scale booster systems and washing systems.

• PM45
• Centrifugal Impeller, Peripheral Turbine
• 415v 50Hz
• 0.37Kw
• 40 Litres Per Minute Maximum
• 40 Metres Head Maximum
• Maximum suction 6 Metres if used with a filter footvalve
• 1" BSP Female Inlet & Outlet
• H 155mm x W 125mm x L 265mm
• 6.2Kg
• Maximum liquid peak temperature 70 Degrees
• Suitable for clean water onlyapplications, water boosting, washing systems
