Model

Power (Kw)

Outlet size

Max Flow lpm

Max Head (m)

Weight (kg)

RS 150

0.15

1¼”

120

7

12

RS250

0.25

1½”

180

9

13

RS 400

0.4

2”

240

12

14

RS 550

0.55

2”

300

14

19.6

RS 750

0.75

2”

350

16

20

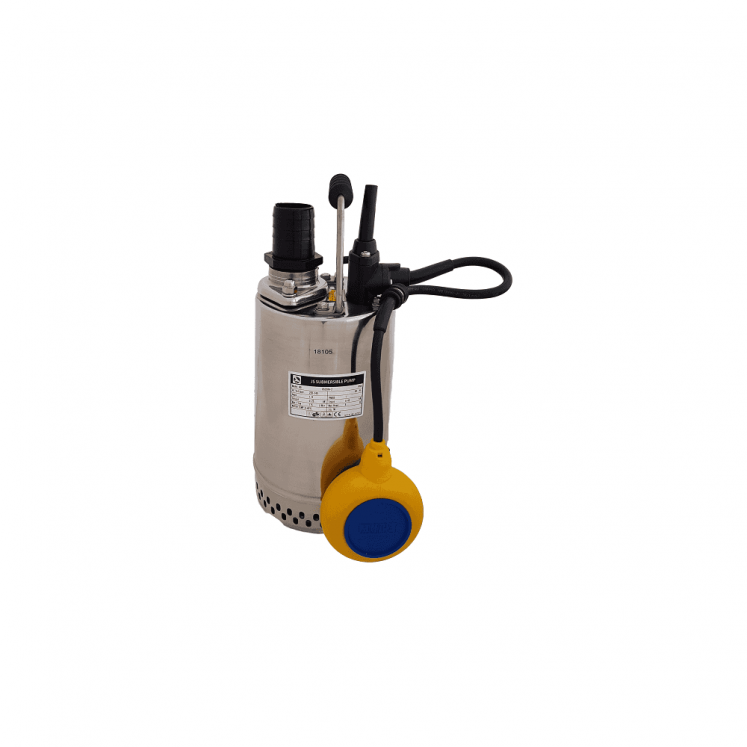

RS150 Automatic top outlet drainage pump 230vTop outlet, twin mechanical seals, carbon ceramic and silicon carbide in a lubricated chamber. Stainless steel outer case, shaft and motor case. Cast iron lower motor bearing/seal housing, motor top cover and volute. Complete with 10 metres of power cable. Hose tails are supplied with all models. Water features, drainage applications, clean and dirty water. Maximum immersion 7 metres.

To make these pumps automatic they can be fitted with the MAC3 cable float switch. They can also be fitted with the AGMA side type float switch. (ask for details if the model isint listed, NOTE the AGMA is not recommended to be fitted to the RS750 110v due to the high current rating)
