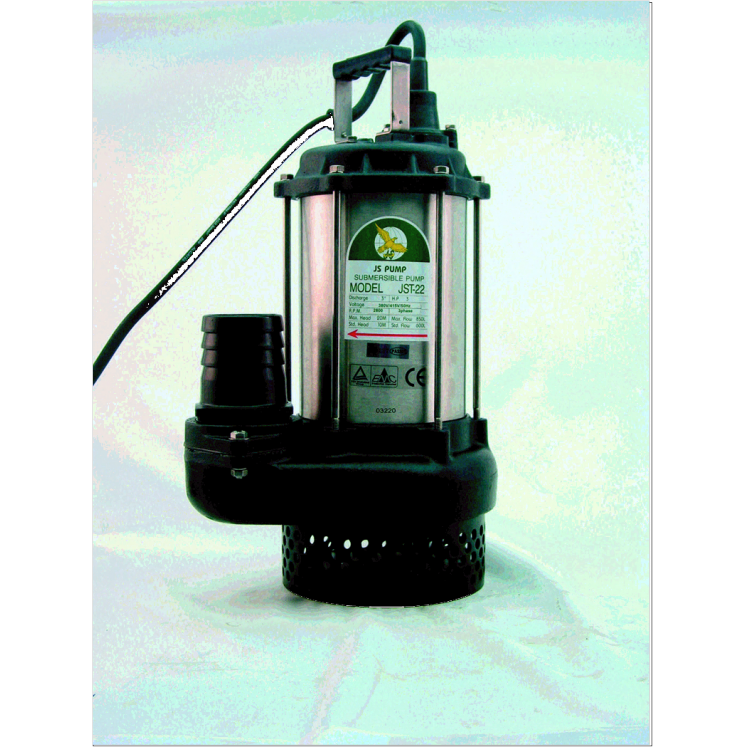

JST - 22 3" Submersible Manual Pump 415v
Code: 011-022- H x W x L - 510 x 220 x 315
- LPM/HM - 1050/20
- kW - 2.2
- OUR PRICE INCLUDES V.A.T
| All major credit and debit cards are accepted |  |
 |
 |
 |
Model
Power
(kW)
Outlet size
Max Flow
Litres/min
Max Head
(m)
Weight
(kg)
JST4
04
2”
240
15
14
JST8 2”
0.8
2”
380
15
24
JST8 3”
0.8
3”
380
15
24
JST15
1.5
3”
500
18
28
JST22
2.2
3”
850
20
39
JST37
3.7
4”
1300
24
44
JST55
5.5
4”
1800
22
66
JST75
7.5
6”
2000
31
76
JST22 pumps designed for continuous applications, site drainage, clean and dirty water..Twin mechanical seals, carbon ceramic and silicon carbide in a lubricated chamber. Stainless steel shaft and motor case. Cast iron motor top cover, lower motor/seal housing, pump case, impeller and volute. Complete with 10 metres of power cable. Hose tails are supplied with all models apart from the JST 37, 55 and 75.
Suitable for drainage applications, clean and dirty water.
- JST 22
- Centrifugal Impeller
- Manual - No Float
- 415v 50Hz
- 2.2Kw
- 850 Litres Per Minute Maximum
- 20 Metres Head Maximum
- 3" BSP Female Outlet c/w Hose Tail Connection
- H 510mm x W 220mm x L 315mm
- Complete with 10 Metres of Power Cable
- Suitable for drainage applications, clean and dirty water
