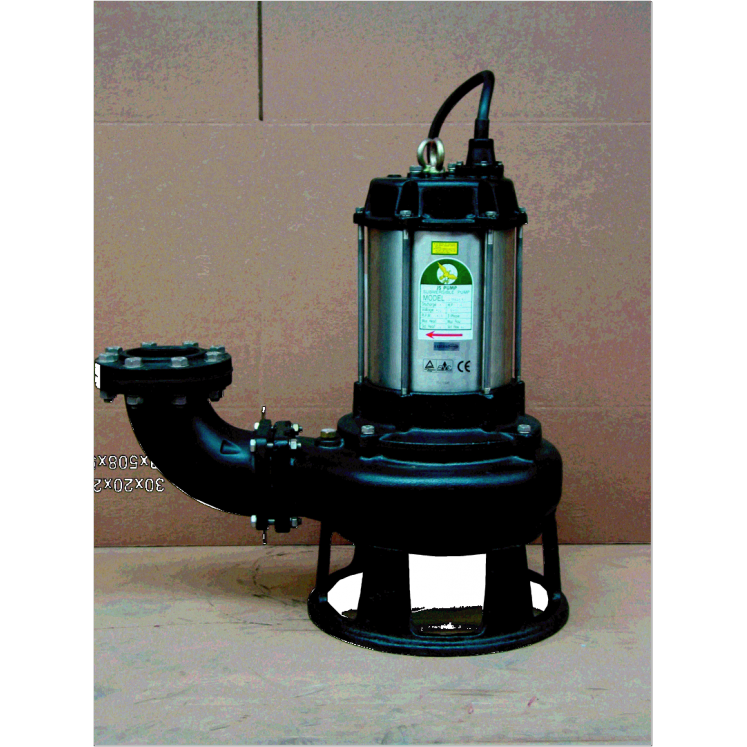

JST55SK submersible sewage cutter pumps. Available as standard as free standing or can be guide rail mounted. See 020-504 for guide rail.

Single channel tungsten carbide tipped impeller running against a grinding diffuser plate causing the shredding actioncutting soft solids into smaller parts to pump through the body to waste.

Cast iron pump body, volute stand, impeller, lower motor bearing/seal housing and motor top cover. Stainless steel shaft and motor case. Twin mechanical seals, arbon ceramic and silicon carbide.

Black water and sewage pumping with soft solids in suspension.

Will cut and pass soft solids through the impeller to discharge pipe.

Impeller incorporating a tungsten carbide cutting tip on a single vane impeller, running against a grinding diffuser plate causing the shredding action.

Single pump tungsten carbide tipped impeller capable of cutting soft solids into smaller parts to pump through the body to waste. Cast iron pump body, volute stand, impeller, lower motor bearing/seal housing and motor top cover.Stainless steel shaft and motor casing. Twin mechanical seals, carbon ceramic and silicon carbide in a lubricated chamber. Complete with 10 metres of power cable. Hose tails are supplied with all models.

• JST5SK
• Single Channel Cutter Impeller
• Manual - No Float
• 415v 50Hz Three Phase
• 5.5Kw
• 1800 Litres Per Minute Maximum
• 19 Metres Head Maximum
• 4" BSP Female Outlet c/w Hose tail Connection
• H 730mm x W 420mm x L 740mm
• Complete with 10 Metres of Power Cable
• Suitable for sewage waste drainage applications
