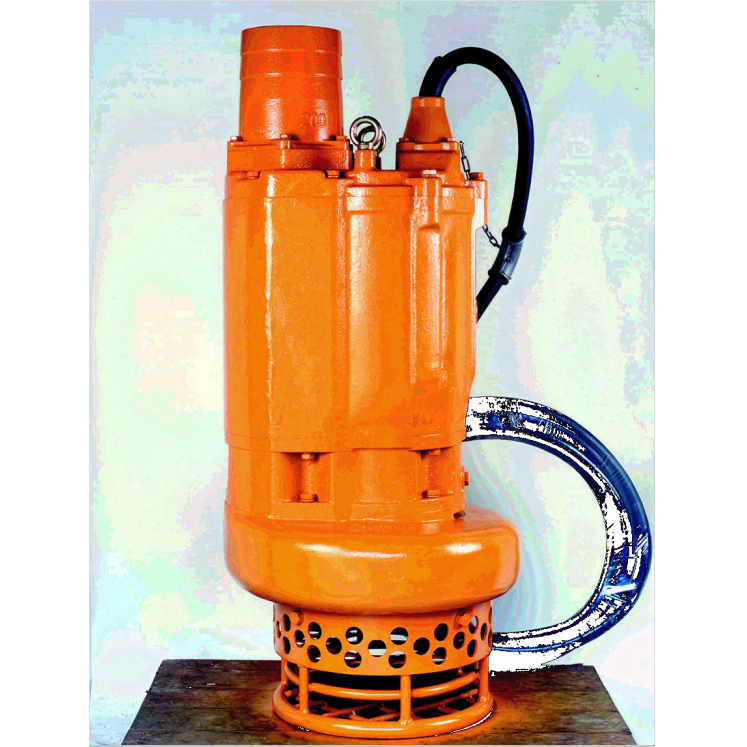

JST75KBH 4" High Flow Submersible Sludge Slurry Pump 380v/415v. JST-KZN H/L/KB Series, heavy duty construction, water jacket with axial flow cooling. Built in agitator, specially designed to create an inherent mixing action at the pump inlet causing the solids to move into suspension and to help the impeller and flow chamber clear and unclogged.

Heavy duty long wear resistant impeller and agitator. Double silicon seal in a lubricated chamber. Direct online starting.

For muddy liquid generated form civil engineering projects and architectural works. Also suitable for agricultural projects.

1550 lm,42 metre head, 7.5 kw motor, 415v 3 phase.

For muddy liquid generated from civil engineering projects and architectural works.

Also suitable for agricultural waste projects.

Heavy Duty Construction.

Top Discharge.

Water Jacket with Axial Flow Cooling.

Double Mechanical Seal.

Built in agitator. Specially designed to create an inherent mixing action at the pump inlet causing the solids to move into suspension and to help keep the impeller and flow chamber clear and unclogged.

Heavy duty wear resistant impeller and agitator.

Supplied with H07RNF cable as standard.

Armoured cable to suit most duties available upon request.

• JST-75KBH
• Centrifugal Impeller & Agitator
• Manual - No Float
• 415v 50Hz
• 7.5Kw
• 137g
• 1550 Litres Per Minute Maximum
• 42 Metres Head Maximum
• 4" BSP Male Outlet
• H 795mm x W 345mm x L 370mm
• Complete with 20 Metres of Power Cable
• Suitable for muddy liquid generated from civil engineering projects and architectural works. Also suitable for agricultural waste projects
