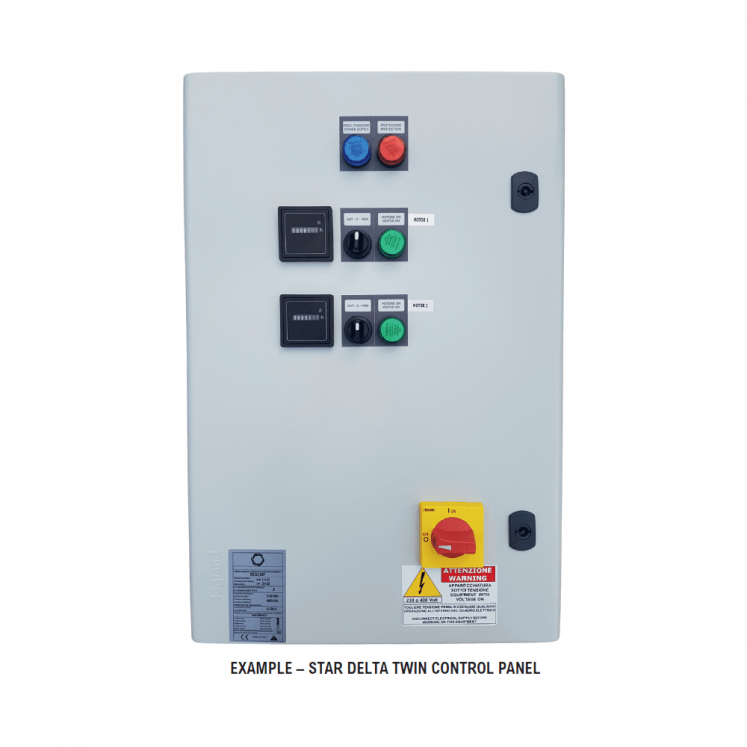

Single pump control panels - Delta 1 / Twin pump control panels - Delta 2

Delta 1/10 Delta 2/10 7.5Kw 9-12.5 Amps

Delta 1/15 Delta 2/15 11Kw 11-16 Amps

Delta 1/20 Delta 2/20 15Kw 14-20 Amps

IP54 Steel enclosure with interlock main isolator. Line fuses and overload relays. Transformer for low voltage circuit, auto changeover relay (twin pump) run and trip indicators and hour counter, auto off manual switch. Alarm circuit 24v AC.

Single pump panels require a two float operation (three if using the alarm feature).

Twin pump panels require a three float operation (four if using the alarm feature).

Optional Extra's - High Level Alarm Equipment –

Rectifier AC-DC & Internal buzzer/Remote connection – Code 200-001

12 Volt AC/DC 22mm Panel Sounder / Continuous lit lamp IP20 - Code 200-002

Flashing Beacon Sounder 12/24v DC - Code 309-5922
