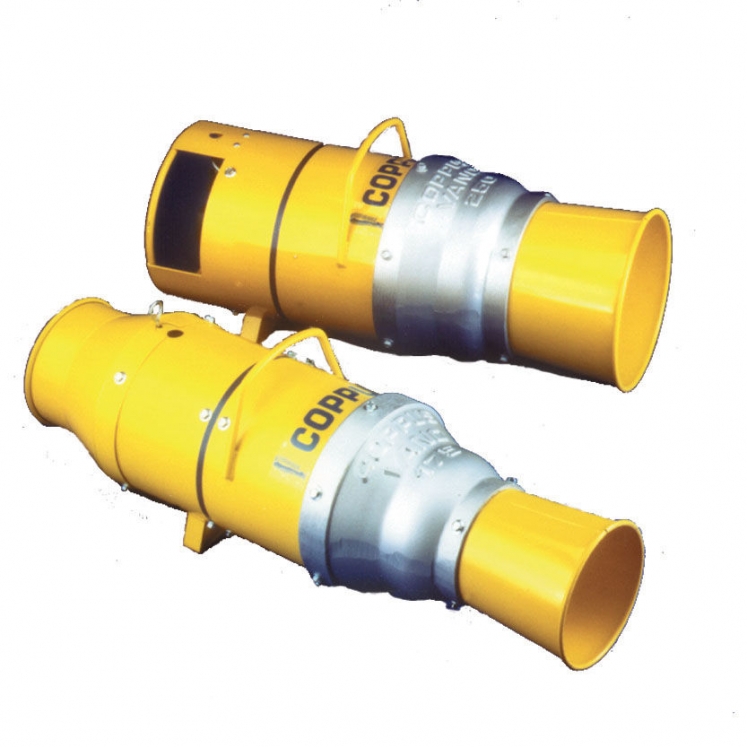

The VANO models offer a fixed guide vane design that delivers high volumes of air while maintaining static pressure for exhausting fumes and delivering fresh air. A rugged, durable, high-performance design makes the VANO models ideal for ventilating tanks, process vessels, tank cars, manholes and other confined spaces.

Convertible Design:By removing the inlet sleeves, the VANO 175CV and 250CV convert to vertical exhaust units.

With Inlet Sleeve Installed:The flexible duct can be attached to inlet and outlet ends. This allows fumes to be exhausted from a confined space, or fresh air to be delivered from a remote area.

With Inlet Sleeve Removed:Cut-outs on inlet end of CV models are exposed for exhausting heavier-than-air fumes from the bottoms of tanks, vats, drums, and other confined spaces.

Features
Straightening fixed guide vanes for improved static pressure performance
Accepts ducting at inlet and outlet ends
Converts to exhaust fumes from bottom of tanks
Available with totally enclosed (TE) or explosion proof (EP) motors and compatible switch; all models supplied with 15 ft power cord
Heavy-gauge, powder-coated steel and cast aluminum construction
Spark-resistant fan blades
Automatic thermal overload protection standard on VANO 175CV and 250CV models
